ChilkatCSP Reference

Docs: Certificate • Crypt • XML • Mail • MHT • S/MIME • Zip • XMsg • SSL • RTC • Charset
CkStringArray • CkData • ChilkatCSP

This component is part of the Chilkat Util Dll.

The ChilkatCSP object is used to explore the Cryptographic Service Providers on your machine, and to specify the CSP, encryption, and hash algorithms to use for encryption and digital signature creation.

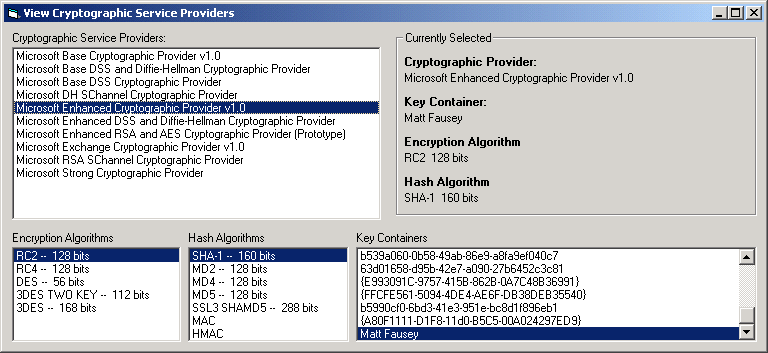

Example and Screenshot

The ChilkatCSP object is the standard way to select the CSP, key container, and encryption/hash algorithms for all Chilkat components that provide encryption and digital signature capabilities.

A Visual Basic example of using ChilkatCSP with a ChilkatEmail object is shown below:

Dim csp as ChilkatCSP

Set csp = New ChilkatCSP
' Properties are initialized to defaults, so only set what needs to be changed.

csp.ProviderName = "Microsoft Enhanced Cryptographic Provider v1.0"

csp.KeyContainerName = "My Container"

csp.SetEncryptionAlgorithm("3DES")

csp.SetHashAlgorithm("MD5")

Dim email as ChilkatEmail

Set email = new ChilkatEmail

email.SendEncrypted = 1
email.SetCSP csp
' When the email is sent, it will be encrypted using the MS Enhanced CSP
' and 3DES encryption will be used.

...

Allows for Smart Card CSPs
This architecture will allow any CSP to be used, including hardware-based smart-card CSPs.

Properties

EncryptAlgorithm As String read-only

Returns the name of the currently selected encryption algorithm in the currently selected CSP.



EncryptAlgorithmID As Long read-only

Returns the ID of the currently selected encryption algorithm in the currently selected CSP.



EncryptNumBits As Long read-only

Returns the key-length of the currently selected encryption algorithm in the currently selected CSP.



HashAlgorithm As String read-only

Returns the name of the currently selected hash algorithm in the currently selected CSP.



HashAlgorithmID As Long read-only

Returns the ID of the currently selected hash algorithm in the currently selected CSP.



HashNumBits As Long read-only

Returns the bit length of the currently selected hash algorithm in the currently selected CSP.



KeyContainerName As String read/write

The name of the currently selected key container within the currently selected CSP. The default is typically the name of the current logged-in user.



ProviderName As String read/write

The currently selected CSP. To select another CSP, simply set this property to the name of the CSP, such as "Microsoft Enhanced Cryptographic Provider v1.0". If the CSP is not available on your machine, the property value will not change. The initial and default value for this property is "Microsoft Base Cryptographic Provider v1.0".



NumEncryptAlgorithms As Long read-only

The number of encryption algorithms provided by the currently selected CSP.



NumHashAlgorithms As Long read-only

The number of hash algorithms provided by the currently selected CSP.



ProviderType As Long read-only

This is an integer representing the type of CSP. (Chilkat uses it for internal use.)

Methods

GetEncryptionAlgorithm(index As Long) As String

Returns the name of the Nth encryption algorithm provided by the currently selected CSP. Indexing begins at 0.

GetEncryptionNumBits(index As Long) As Long

Returns the key length of the Nth encryption algorithm provided by the currently selected CSP. Indexing begins at 0.

GetHashAlgorithm(index As Long) As String

Returns the Nth hash algorithm provided by the currently selected CSP. Indexing begins at 0.

GetHashNumBits(index As Long) As Long

Returns the bit length of the Nth hash algorithm provided by the currently selected CSP. Indexing begins at 0.

GetKeyContainerNames() As CkStringArray

Returns a CkStringArray containing the names of all the key containers in the current CSP.

GetServiceProviders() As CkStringArray (Only avaliable on Windows 2000 and Windows XP)

Returns a CkStringArray containing the names of all Cryptographic Service Providers on the computer.

HasEncryptAlgorithm (name As String, numBits As Long) As Long

Returns 1 if the currently selected CSP contains an encryption algorithm matching the name and key length. Otherwise returns 0.

HasHashAlgorithm (name As String, numBits As Long) As Long

Returns 1 if the currently selected CSP contains a hash algorithm matching the name and bit length. Otherwise returns 0.

SetEncryptAlgorithm(name As String) As Long

Sets the currently selected encryption algorithm. The return value is the key-length of the algorithm. If the algorithm is not available, the return value is 0. (There usually is not a need to explicitly select the key length, because the key length can be part of the name, such as "AES 128", or it is determined by the CSP. For example, the Microsoft Enhanced CSP will return a 128-bit key length for RC2, whereas the Base CSP will return a 40-bit key length.)

SetHashAlgorithm(name As String) As Long

Sets the currently selected encryption algorithm. The return value is the bit-length of the algorithm. If the algorithm is not available, the return value is 0.

SetProviderMicrosoftBase()

Sets the CSP to the Base Microsoft Cryptographic Provider, which is the default.

SetProviderMicrosoftEnhanced()

Sets the CSP to the Enhanced Microsoft Cryptographic Provider.

SetProviderMicrosoftRsaAes()

Sets the CSP to the Microsoft Cryptographic RSA/AES Prototype Provider.

SetProviderMicrosoftStrong()

Sets the CSP to the Strong Microsoft Cryptographic Provider.

---

To view the Cryptographic Service Providers on your Windows 2000 or Windows XP computer, download the following Visual Basic application and Win2K version of the ChilkatUtil control: Download Win2K ChilkatUtil
