Setup Google Workspace Account for Sending SMTP GMail from a Service Account

To send email via SMTP from a Google service account in a Google Workspace domain, you must use OAuth2 with domain-wide delegation to impersonate a user. This allows your service account to act as a real user, meaning a non-GMail email address (e.g., joe@example.com) and send mail via smtp.gmail.com.

Here's a complete step-by-step guide:

Prerequisites

• A Google Workspace (formerly G Suite) domain.
• Access to the Google Cloud Console.
• Admin access to the Google Workspace Admin Console.
• Your app must use the XOAUTH2 mechanism to authenticate with smtp.gmail.com.

  ---

Step-by-Step Setup

1. Create a Service Account

In Google Cloud Console:

• Go to IAM & Admin > Service Accounts.
• Click Create Service Account.
• Name it, and grant no roles for now.
• Click Done.

  ---

2. Enable Domain-Wide Delegation

• Edit your service account.
• Go to Advanced Settings.

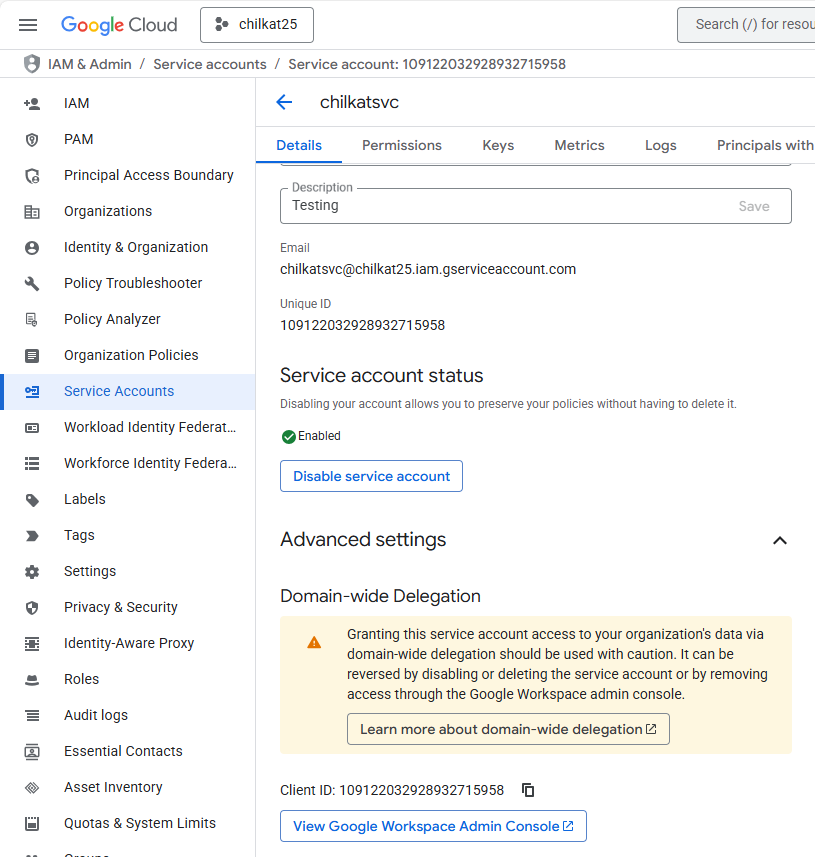

• Note the Client ID that appears (you’ll use this later). In the above image the Client ID is 109122032928932715958
• Go to: Google Workspace Admin Console

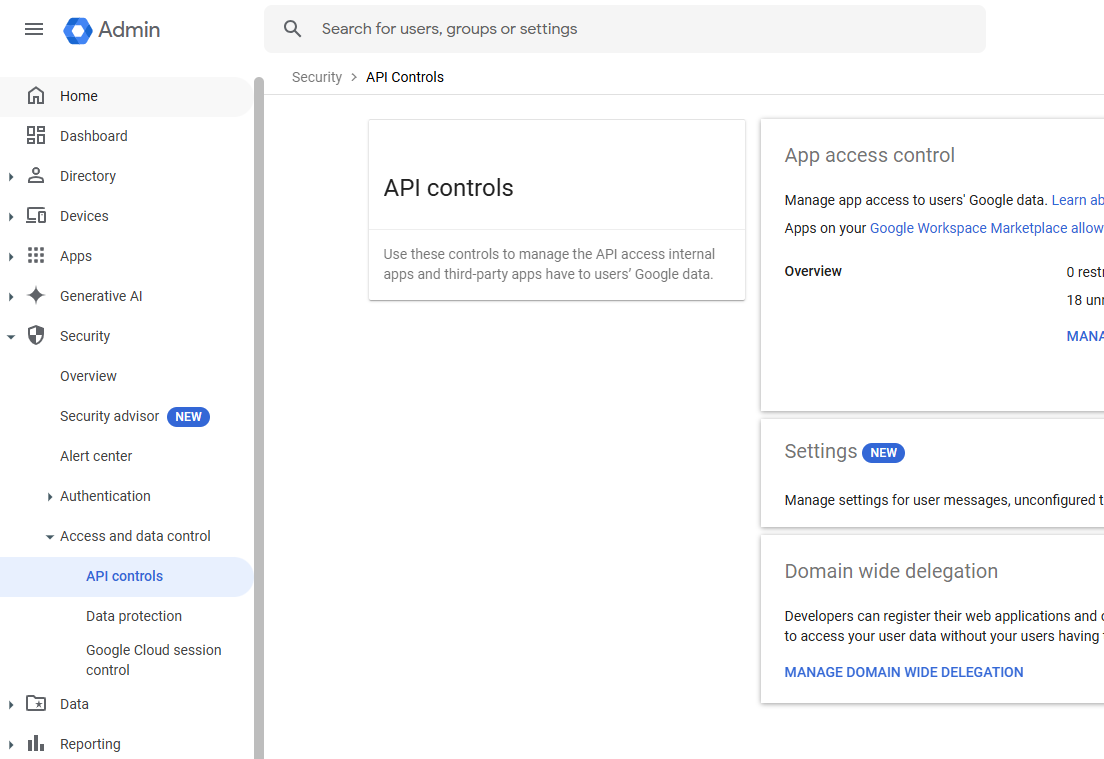

• In the Admin Console, go to Security / Access and data control / API controls. Then click on Manage Domain Wide Delegation.

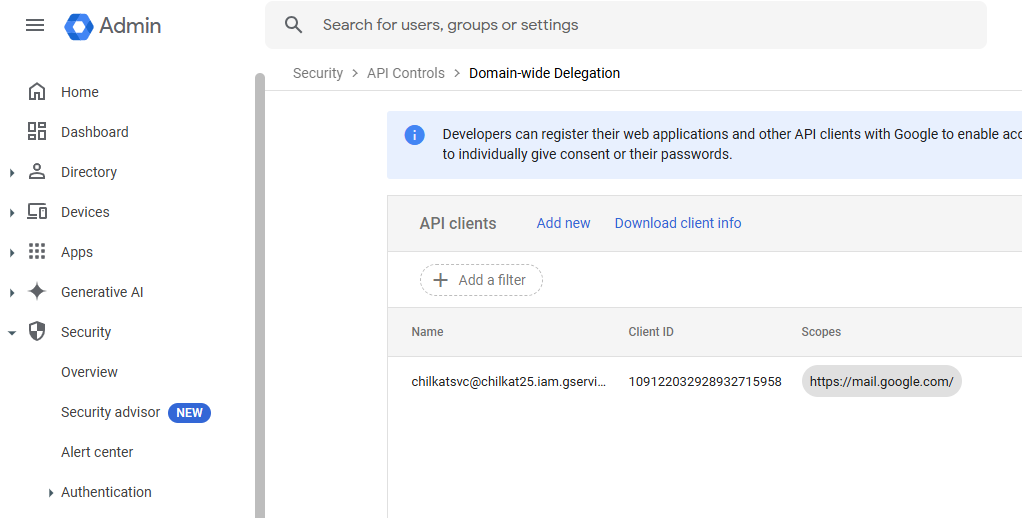

• Click Add new and add an entry for your google service account using the service account email address, Client ID, and the scope https://mail.google.com/. It should look like this when finished:


3. Permission to Create a Service Account Key

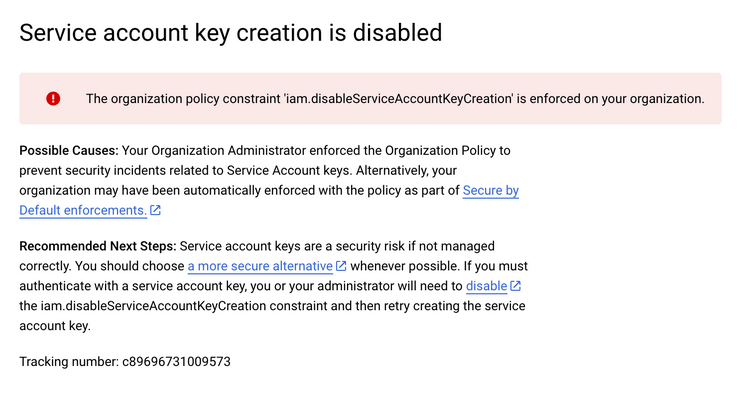

• You'll first need to make sure your account has permission to create a key. If not, you'll get this error:

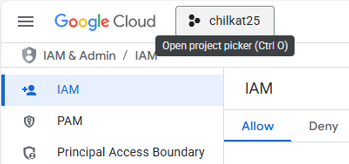

• Open the project picker:

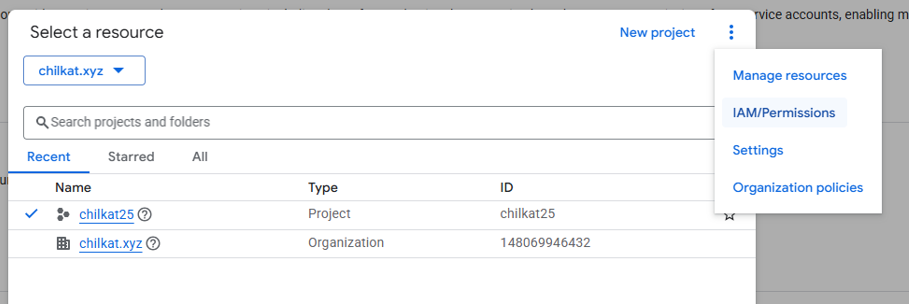

• Click on the 3 dots at the top right ("More Actions") and select IAM/Permissions:

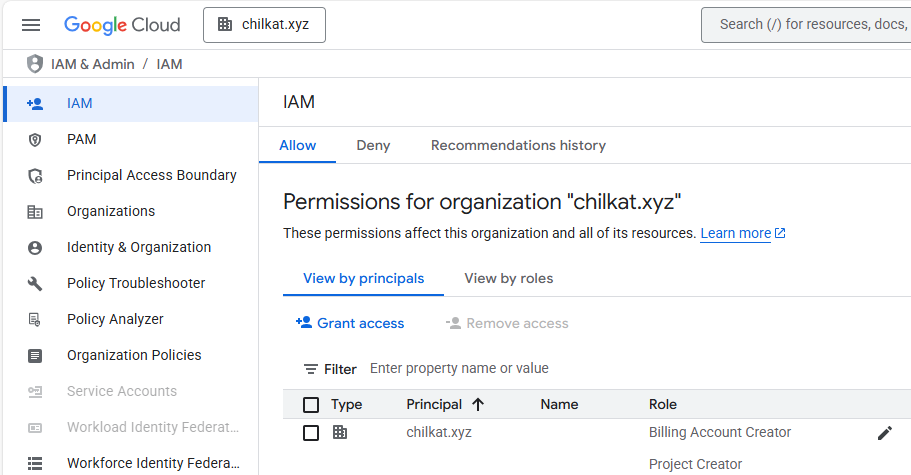

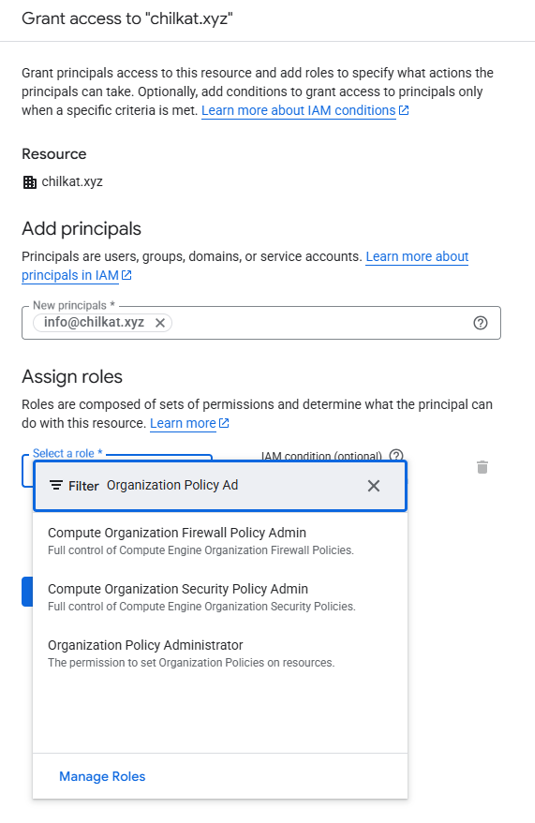

• Click on Grant Access:

• The principal is your email address (non-GMail address, such as info@chilkat.xyz), the role to assign is Organization Policy Administrator

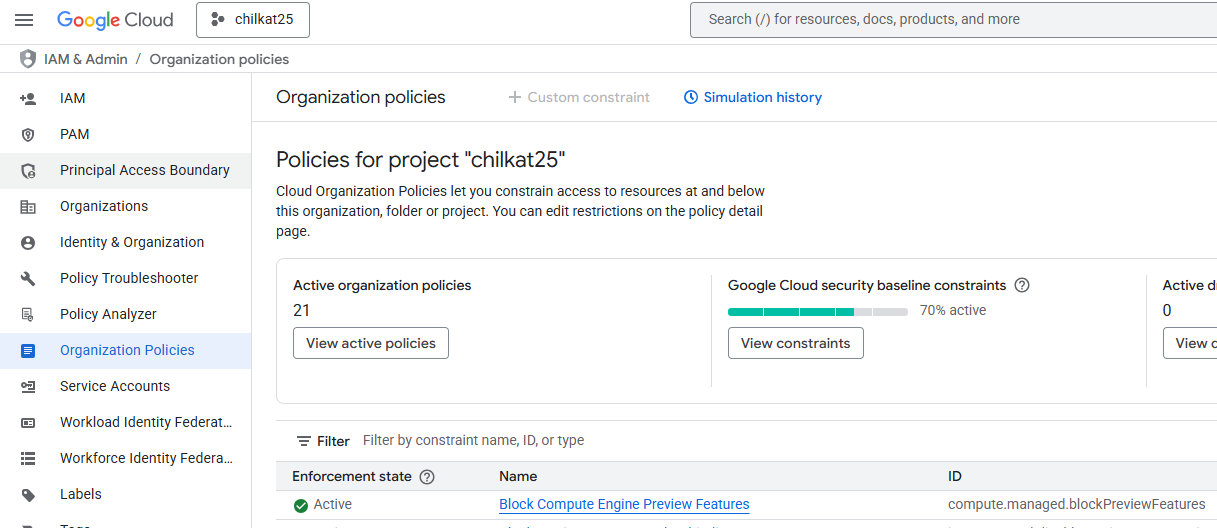

• Next, go to Organization Policies:

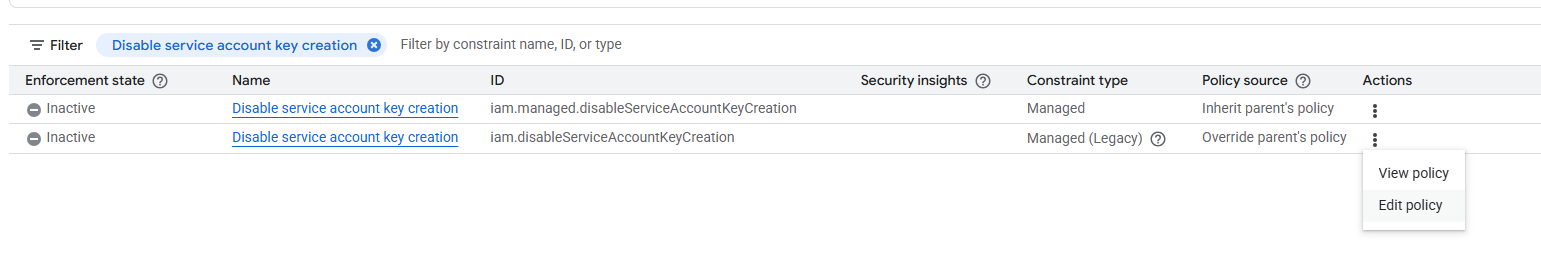

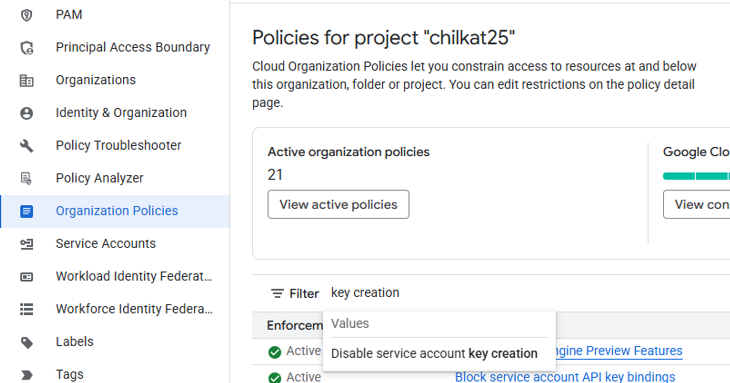

• Type "key creation" in the Filter, and select Disable service account key creation:

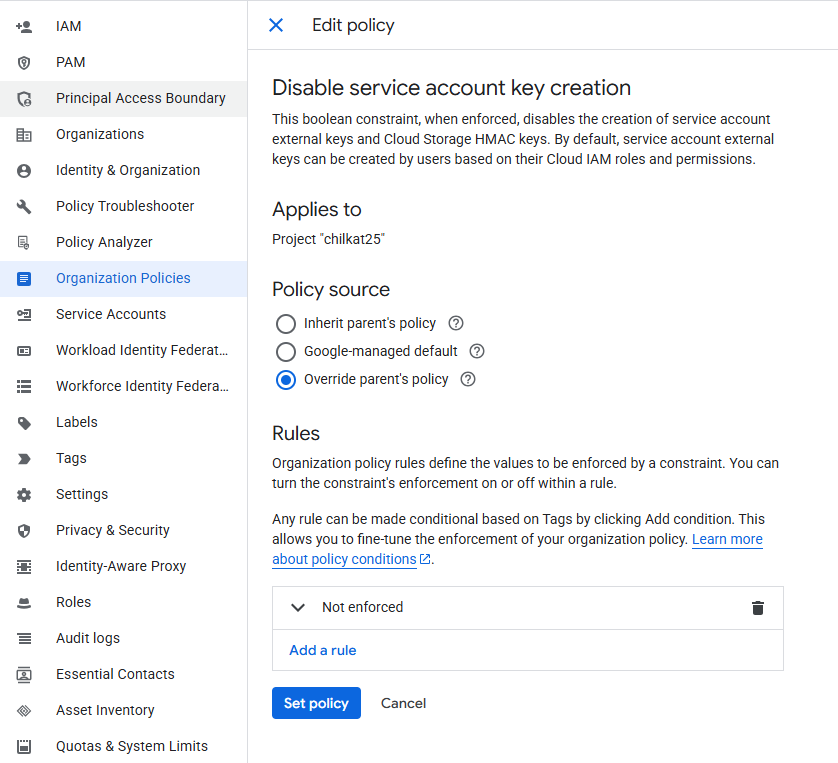

• Edit the iam.disableServiceAccountKeyCreation - Managed (Legacy) policy.

• Choose Override parent's policy, and Not enforced


4. Create a Service Account Key

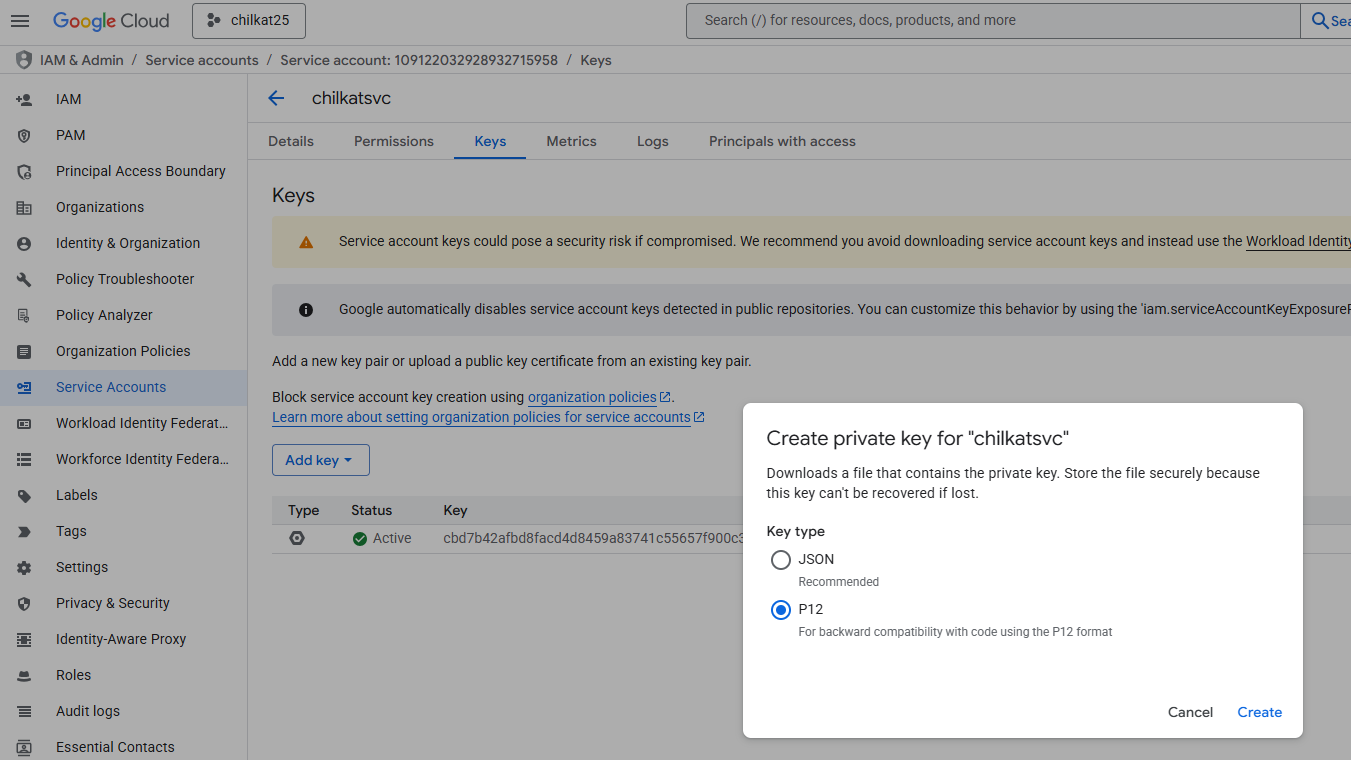

Now that you have permission to create a service account key, go ahead and create a P12 key. A .p12 is a PKCS#12 file which is also called a PFX file (.pfx).

5. GMail SMTP Examples using a Google Service Account

The links below show how to obtain an access token with a Google service account's .p12 key and use it to send emails through the Gmail SMTP server.

The links below show how to obtain an access token with a Google service account's JSON key and use it to send emails through the Gmail SMTP server.
